Drum Lifting Device
Robust load-handling attachment for safely lifting and transferring drums – by crane or forklift.
Drum Lifting Device

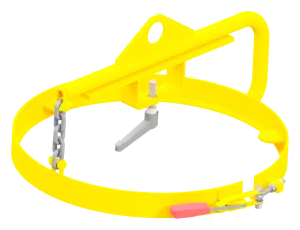

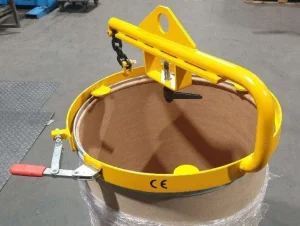

The drum lifting device is a robust load-handling attachment for safely lifting and transferring drums. The gripper engages positively in the groove of the drum bead and is additionally secured by a clamping lever – ensuring a secure hold even before lifting and preventing the container from slipping or being damaged.
The drums are transported in an open design: lifting and transferring take place without a cover or additional re-clamping, and the drum contents remain accessible at all times.
- Easy picking up and setting down of individual drums with a forklift
- Quick removal of drums from the pallet
- Safe transport without manual lifting or tipping
- Robust, easy-to-handle design
- Shorter set-up times when changing drums
Product details
Design and construction comply with the Machinery Directive 2006/42/EC and DIN EN 13155 for non-fixed load lifting attachments. All devices are CE-marked and permanently marked with their load capacity and dead weight. The welded steel frame is powder-coated in signal yellow (RAL 1023) – corrosion-protected, low-maintenance and clearly visible even in harsh operating environments.
Lifting and transport
- Crane: pick-up via lifting eye using a crane hook
- Forklift: pick-up via load hook, fork tine secured by clamping bracket
Available versions
- Cardboard drum – 250 kg load capacity – Ø 520 mm
- Cardboard drum – 250 kg load capacity – Ø 590 mm
- Steel drum – 500 kg load capacity – Ø 570 mm
- and customised to customer requirements
Applications
Drum lifting devices increase occupational safety, optimise in-house material flow and allow drums to be positioned precisely in production, storage and shipping.
Technical data
Key data of the drum lifting device according to the product data sheet.
Get in touch
Do you need a drum lifting device for a different drum size? We also supply customised versions to customer requirements.
