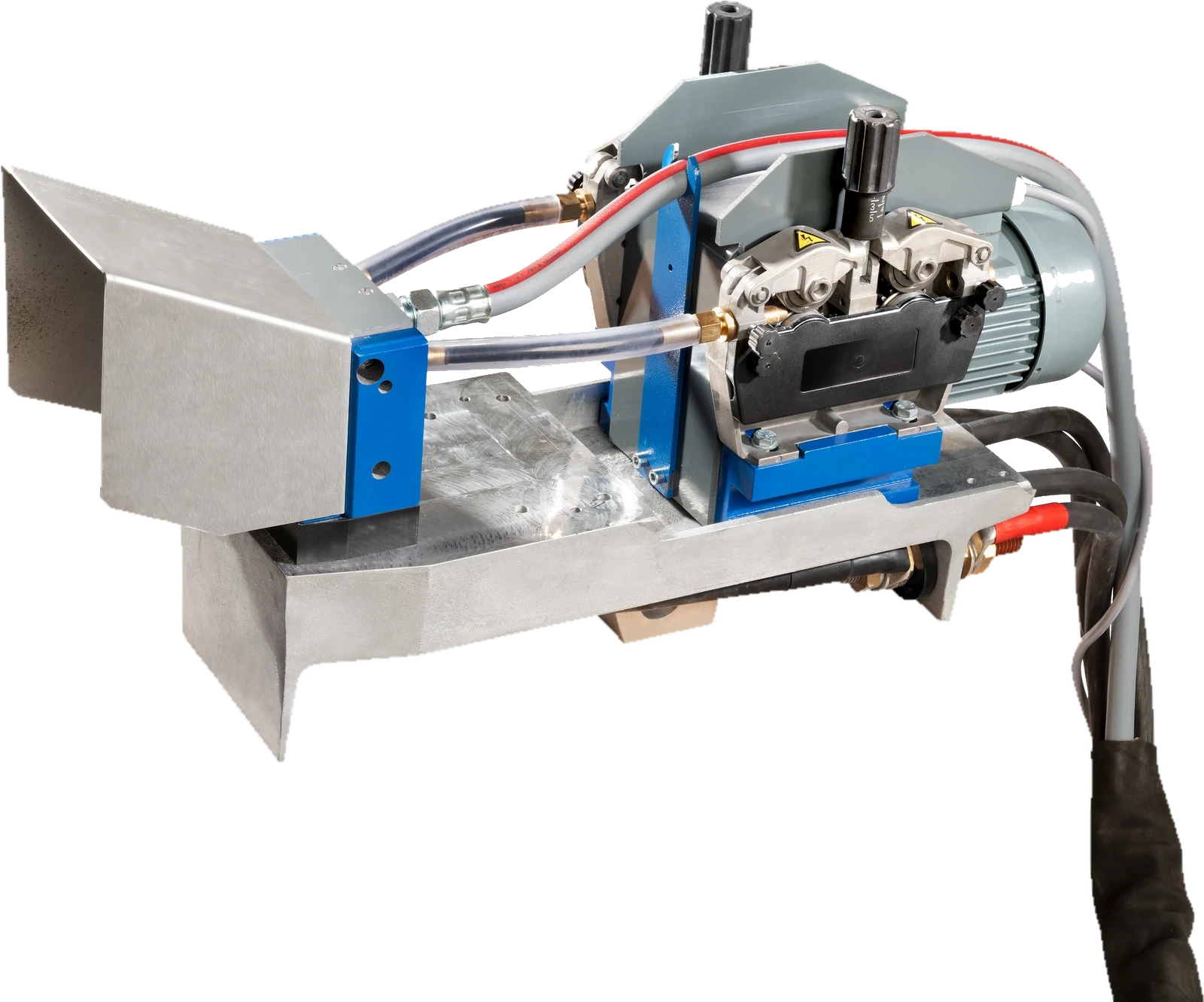

Support Spray Machine HPG
The HPG support spray machine is designed for maximum material output: up to 200 kg of zinc wire per hour at spray currents up to 2000 A. The 550 W geared motor is maintenance-free and delivers a constant wire feed.
- Housing made of fibre-reinforced material for a long service life
- Open or closed nozzle system can be used (round-spray or wide-spray)
- Suitable for processing spray wires Ø 1.6 – 4.76 mm
- Designed for spray currents up to 2000 A
- Maintenance-free 550 W geared motor
- Quick and easy replacement of feed and pressure rollers
Product details
- Spray wire diameter: 3.2 mm (other diameters on request)
- Max. spray current: 2000 A DC (100 % duty cycle)
- Compressed air consumption – atomizing air: 60–120 m³/h
- Nominal diameter of compressed air ring main: 25 mm (1 inch)
- Max. inlet pressure: 10 bar
- Cooling type: convection
- Protection class: IP 21
Applications
For applications with a very high material output – e.g. large coating systems, bridges and infrastructure projects. The HPG supports up to four nozzle system variants (open/closed, round-spray/wide-spray) for a wide range of coating requirements.
Suitable wires
Zinc (Zn): up to 200 kg/h | zinc-aluminium (ZnAl): up to 158 kg/h | aluminium (Al): up to 80 kg/h – at 2000 A. Spray wire diameter 3.2 mm (standard), others on request. DIN EN ISO 14919.
Technical data
Technical data of the HPG support spray machine for high-performance coating applications.
