Hand-held Spray Device OC-Mini
Hand-held spray device

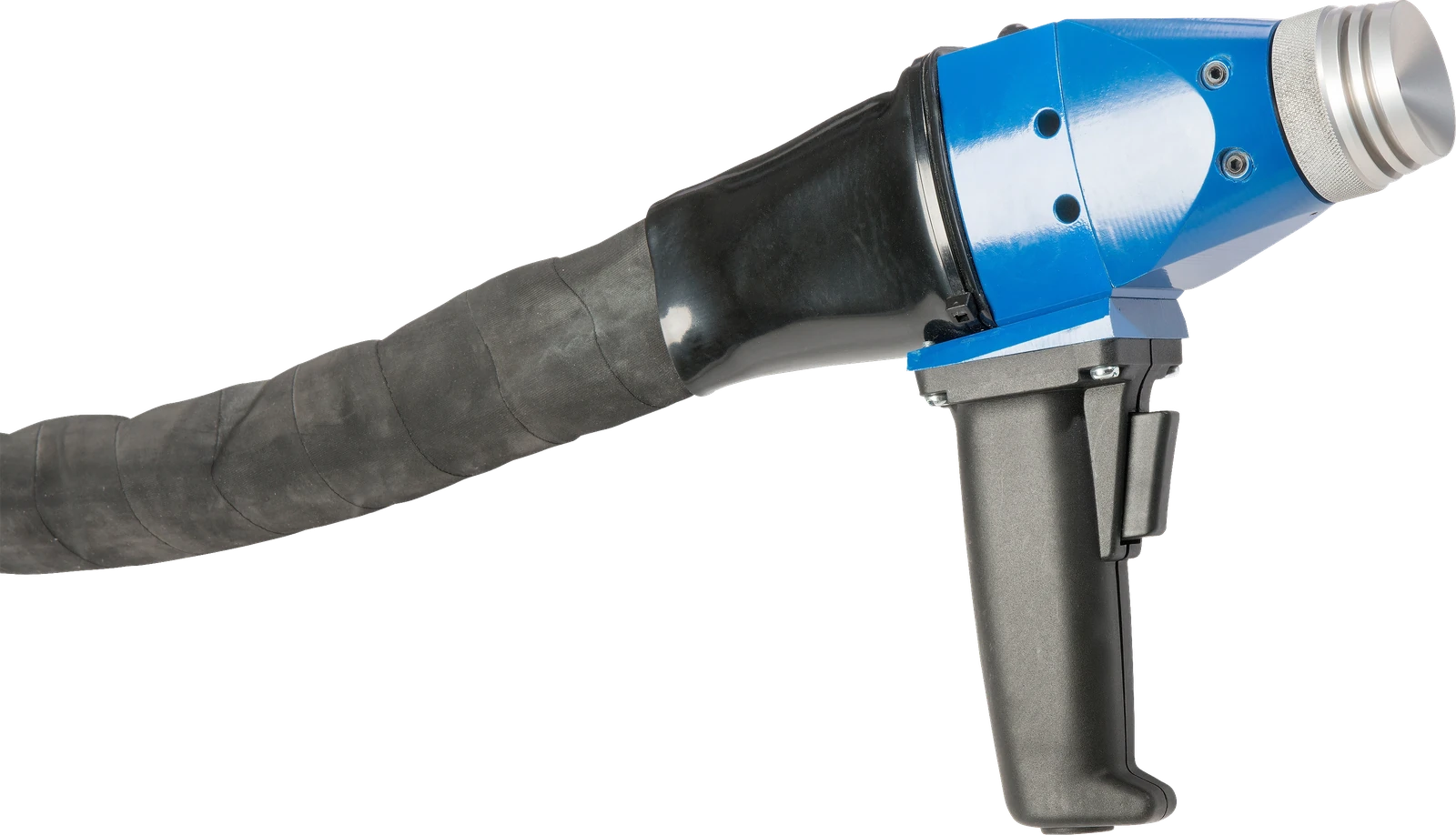

Hand-held Spray Device OC-Mini
The OC-Mini hand-held spray device is consistently designed for low weight without compromising on durability. Weighing only 1.1 kg, it allows fatigue-free work even during long assignments.
- Housing made of fibre-reinforced material for a long service life
- Compact design and very low weight (1.1 kg) for fatigue-free work
- Ergonomic and easy handling
- Light plastic handle with integrated dead man’s switch
- Optimised power connections for high energy efficiency
- Minimal wear part requirements, as no feed unit is needed in the spray device
Product details
- Spray wire diameter: 1.6 / 2.0 / 2.5 mm
- Max. spray current: 600 A DC (100 % duty cycle)
- Max. cable and hose set length: 7 + 3 m (in combination with the PF1 wire feed gear)
- Compressed air consumption – atomizing air: 60–100 m³/h
- Weight: 1.1 kg (without cable and hose set)
Applications
Ideal for hard-to-reach areas and confined working conditions. In combination with the PF1 wire feed gear, cable and hose sets up to 7 + 3 m can be used. Ideally suited for corrosion protection work on bridges, towers and industrial plants.
Suitable wires
Zinc (Zn), zinc-aluminium (ZnAl), aluminium (Al), AlMg5 – spray wire diameter 1.6 / 2.0 / 2.5 mm according to DIN EN ISO 14919. Other diameters available on request.
Technical data
Technical data of the OC-Mini hand-held spray device. The lightest hand-held spray device in the OSUCAS range.
Get in touch
Have specific requirements? We will find the right configuration for you.
