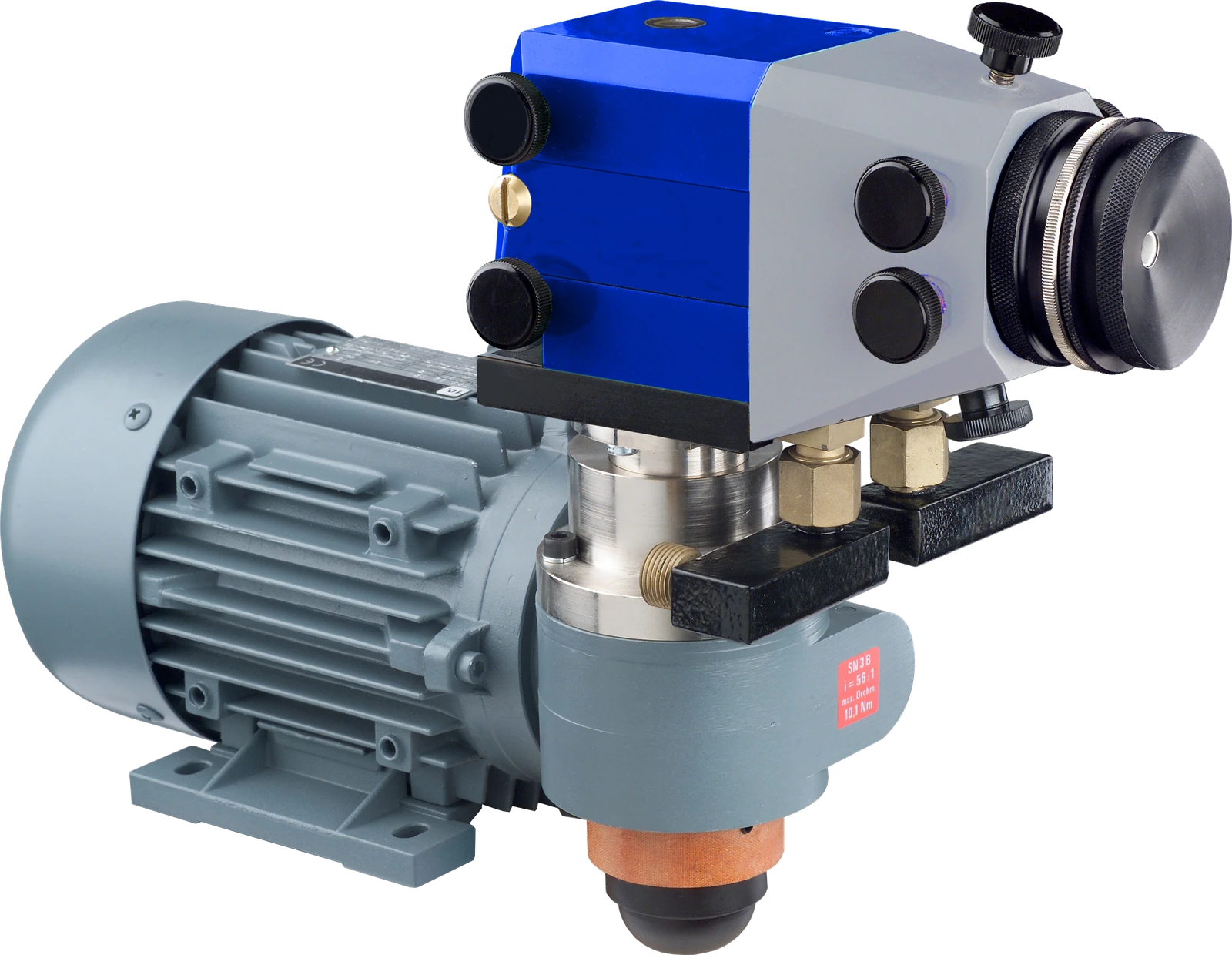

Support Spray Machine LDU2-E
Support spray machine
Support Spray Machine LDU2-E
The LDU2-E support spray machine stands for proven technology in continuous industrial use. In automated systems, it delivers consistent results over long operating times – for spray currents up to 1000 A.
- Housing made of fibre-reinforced material for a long service life
- Use of closed, open or new closed nozzle system
- Suitable for processing solid and cored wires Ø 1.6 – 3.2 mm
- Designed for spray currents up to 1000 A
- Powerful, maintenance-free electric motor
- Can be connected to (almost) all OSUCAS power sources
Product details
- Spray wire diameter: 1.6 – 3.2 mm (depending on the power source)
- Max. spray current: 1000 A DC (100 % duty cycle)
- Compressed air consumption – atomizing air: 60–100 m³/h
- Drive: electric motor (maintenance-free)
Applications
Proven in automated and semi-automated systems for consistent series coating. For technical spray wires, it is usually equipped with the adjustable closed nozzle system. Depending on the application, the open nozzle system or the new closed nozzle system is also available.
Suitable wires
Solid and cored wires Ø 1.6 – 3.2 mm according to DIN EN ISO 14919. Suitable for wear protection, corrosion protection and functional coatings. Other diameters available on request.
Technical data
Technical data of the LDU2-E support spray machine for automated series coating.
Get in touch
Have specific requirements? We will find the right configuration for you.
