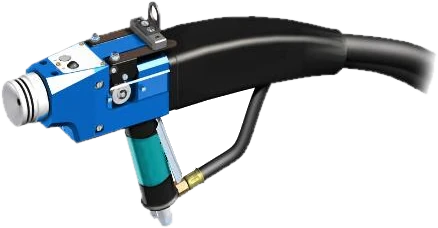

Hand-held Spray Device LDU3
Hand-held spray device
Hand-held Spray Device LDU3
The LDU3 hand-held spray device has proven itself in three-shift operation under the toughest continuous loads. Robust design, simple operation and low wear part requirements make it the reliable choice for demanding corrosion protection projects.
- Proven many times over in continuous industrial use
- Low surface roughness of the coating and thus considerable savings on the top coat
- Suitable for almost any spray coating requirement
- Consistently high production reliability with excellent coating quality
- Available with round-spray or wide-spray nozzle system
Product details
- Spray wire diameter: 2.0 / 2.5 mm
- Max. spray current: 600 A DC (100 % duty cycle)
- Standard power: 350 A (100 % duty cycle)
- Compressed air consumption – air motor: 25 m³/h
- Compressed air consumption – atomizing air: 60–100 m³/h
- Weight: 4.2 kg (without cable and hose set)
- Air motor power: 270 W
Applications
Proven in continuous operation for corrosion protection on bridges, towers, large tanks and steel structures. Wire drive by air motor (pull) combined with a wire feed gear (push) on the power source – for a constant, stable wire feed even with long cable and hose sets.
Suitable wires
Zinc (Zn), zinc-aluminium (ZnAl), aluminium (Al), AlMg5 – spray wire diameter 2.0 / 2.5 mm according to DIN EN ISO 14919. Other diameters available on request.
Technical data
Technical data of the LDU3 hand-held spray device, proven in continuous industrial operation.
Get in touch
Have specific requirements? We will find the right configuration for you.
