Support Spray Machine LDSE2
Support spray machine

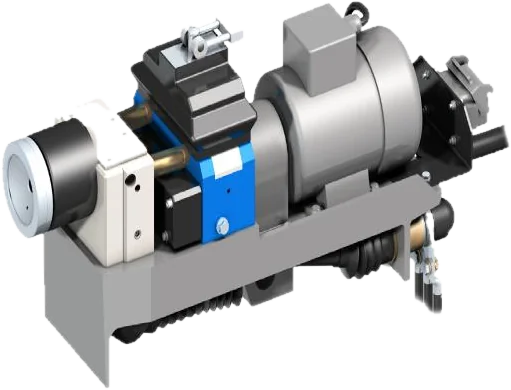

Support Spray Machine LDSE2
The LDSE2 support spray machine specialises in maximum material output with corrosion protection wires – up to 200 kg of zinc wire per hour. The maintenance-free electric motor and the proven feed system ensure reliable continuous coating.
- Housing made of fibre-reinforced material for a long service life
- Closed or open nozzle system can be used
- Suitable for processing spray wires Ø 2.5 – 3.48 mm
- Designed for spray currents up to 2000 A
- Maintenance-free electric motor
- Round-spray and wide-spray nozzle system available
Product details
- Spray wire diameter: 2.5 – 3.48 mm
- Max. spray current: 2000 A DC (100 % duty cycle)
- Spray rate: up to 200 kg/h (zinc)
- Compressed air consumption – atomizing air: 60–120 m³/h
- Drive: electric motor (maintenance-free)
Applications
For applications with a very high material output – e.g. fully automated large coating systems. The LDSE2 processes corrosion protection wires up to Ø 3.48 mm and can be combined with round-spray and wide-spray nozzle systems.
Suitable wires
Zinc (Zn), zinc-aluminium (ZnAl), aluminium (Al) – spray wire diameter 2.5 – 3.48 mm according to DIN EN ISO 14919. Spray rate zinc: up to 200 kg/h at 2000 A.
Technical data
Technical data of the LDSE2 support spray machine for high-performance corrosion protection coating.
